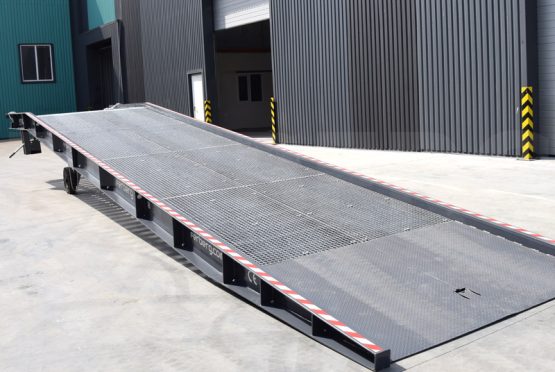

Mobile ramp

In today’s logistics industry, time is of the essence. Our mobile hydraulic ramp easily solves the problem of loading and unloading trucks and containers. With the FERBERG mobile ramp is enough to handle loading and unloading operations with just one forklift.

FERBERG mobile loading ramp helps to save labour costs, optimize logistics and increase profitss.

Send a request

Technical specifications of the mobile ramp

Load
8000; 12000; 16000 kg
Overall length
9400; 11900; 13400 mm
Carriageway width
2000; 2500 mm
Overall width
2280; 2780 mm
Inclined part length
7000; 9500; 10500 mm
Connecting lip length
300 mm
Min. operating height
900 mm
Max. operating height
1650; 1700; 1750 mm
Parallel to ground level
at a height of 1200 mm
Carriageway surface
zinc coated serrated grating
Number of hydraulic cylinders
2 pieces
Number of wheels
2 pieces
Wheels
solid
Complete set
chains 8x68 mm (length — 1,500 mm) with hooks 320A — 2 pieces, hydraulic hand pump Pm45 (made in Italy), rubber wheel chocks, tow pole.
Warranty (Guarantee)
18 months

Dimensions of mobile ramp

#
Model
Load capacity, kg
Dimensions, mm
I
H
L
D
G
N
X
1
FB-MR08-094-20
8000
7000
2400
9400
2000
2280
900
1650
2
FB-MR08-119-20*
8000
9500
2400
11900
2000
2280
900
1700
3
FB-MR08-134-20
8000
10500
2900
13400
2000
2280
900
1750
4
FB-MR08-134-25
8000
10500
2900
13400
2500
2780
900
1750
5
FB-MR12-094-20
12000
7000
2400
9400
2000
2280
900
1650
6
FB-MR12-119-20
12000
9500
2400
11900
2000
2280
900
1700
7
FB-MR12-134-20
12000
10500
2900
13400
2000
2280
900
1750
8
FB-MR12-134-25
12000
10500
2900
13400
2500
2780
900
1750
9
FB-MR16-094-20
16000
7000
2400
9400
2000
2280
900
1650
10
FB-MR16-119-20
16000
9500
2400
11900
2000
2280
900
1700
11
FB-MR16-134-20
16000
10500
2900
13400
2000
2280
900
1750
12
FB-MR16-134-25
16000
10500
2900
13400
2500
2780
900
1750
* stock model

Additional options

  • SL – Safety supporting legs
  • HR – Protective removable handrails
  • TC – Tent cover
  • CLR – Another color
  • EHP – Electric (220V) hydraulic power station with a control panel
  • EHBP – Electric (12V) hydraulic station with a battery pack

Ramp operating principle

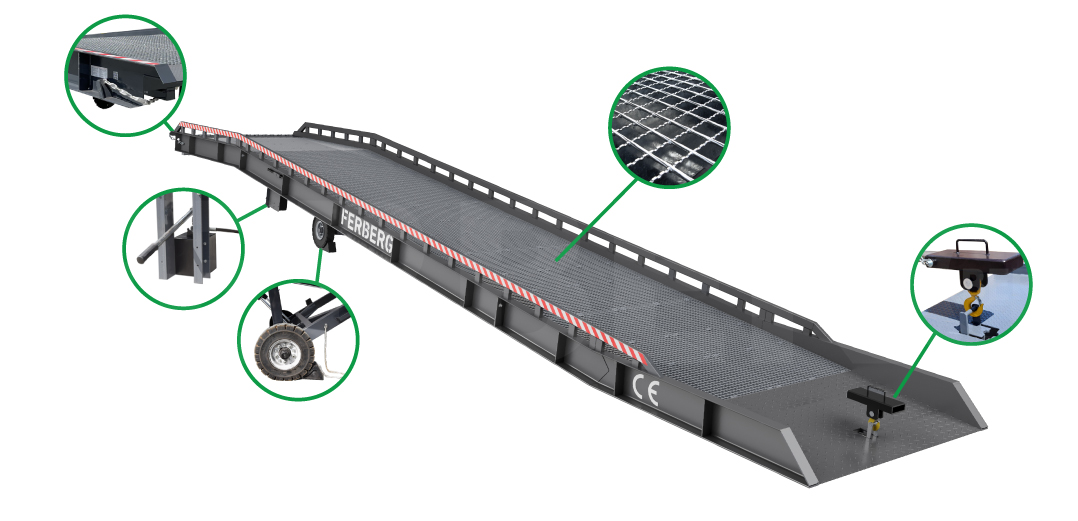

Mobile ramp complete set

images

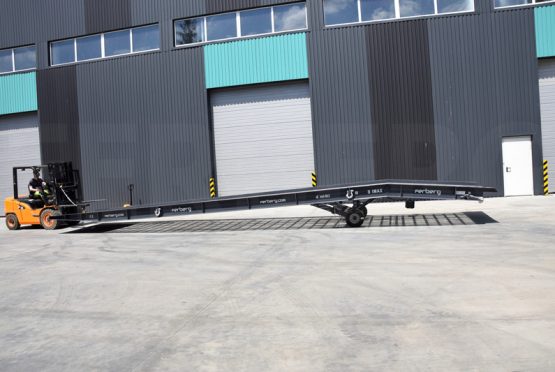

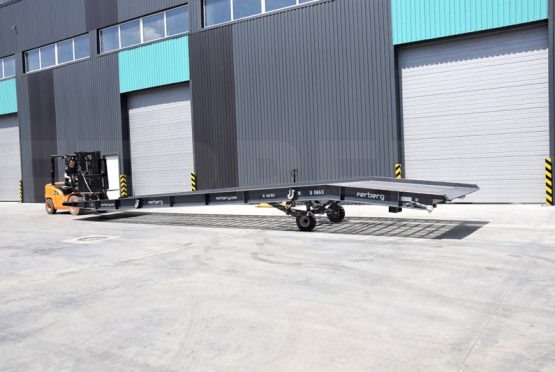

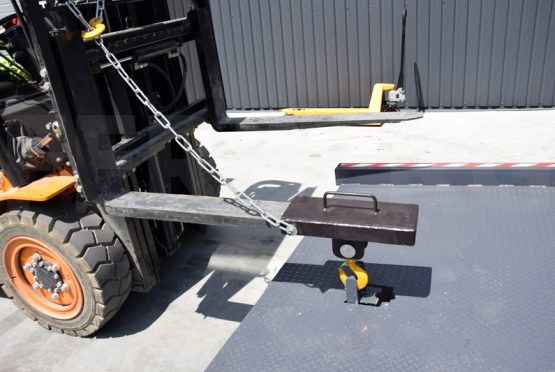

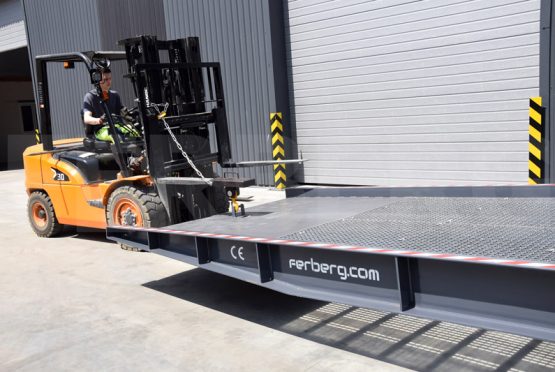

The loading ramp is moved using a tow pole with a single fork clamp for the forklift.

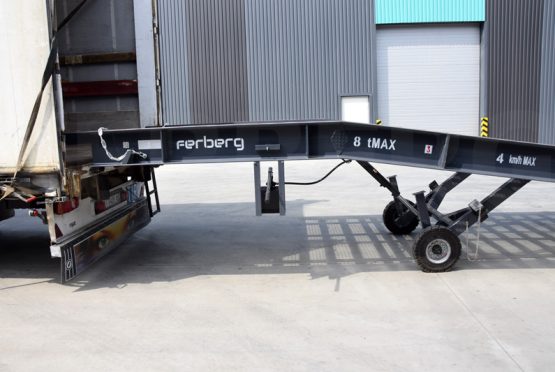

There are chains with carabiners on both sides of the horizontal part of the ramp to secure the loading ramp to the vehicle body. The wheels of the ramp are secured with wheel chocks. Chains and wheel chocks are included with the mobile ramp.

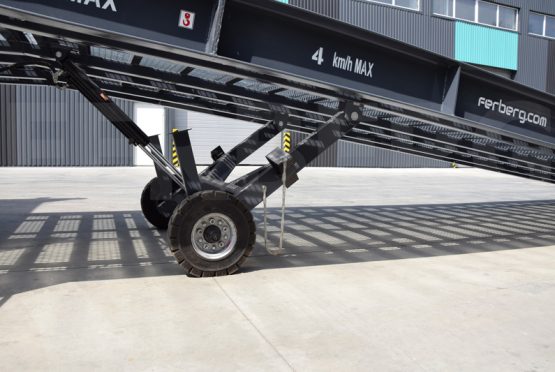

The hydraulic unit of the mobile loading ramp consists of a hydraulic pump and two hydraulic cylinders interconnected by hydraulic sleeves of high pressure. One person presses the handle of the oil pump and raises the front edge of the mobile ramp to the required height (from 900 mm to 1750 mm).

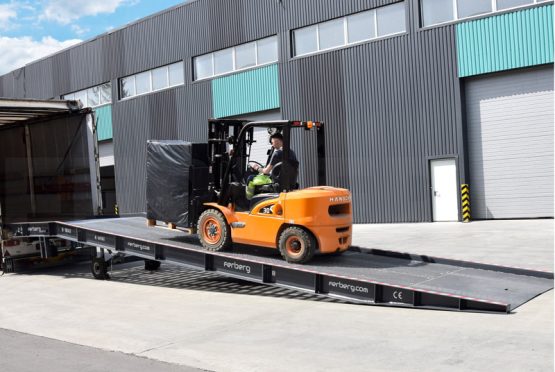

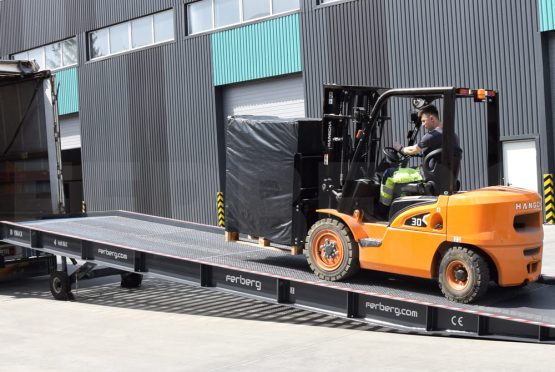

Thus, only one forklift driver is enough to carry out all loading and unloading operations, transport the ramp to the place of its use, connect it to the truck body, fulfil the work and then tow back the ramp to its storage.
